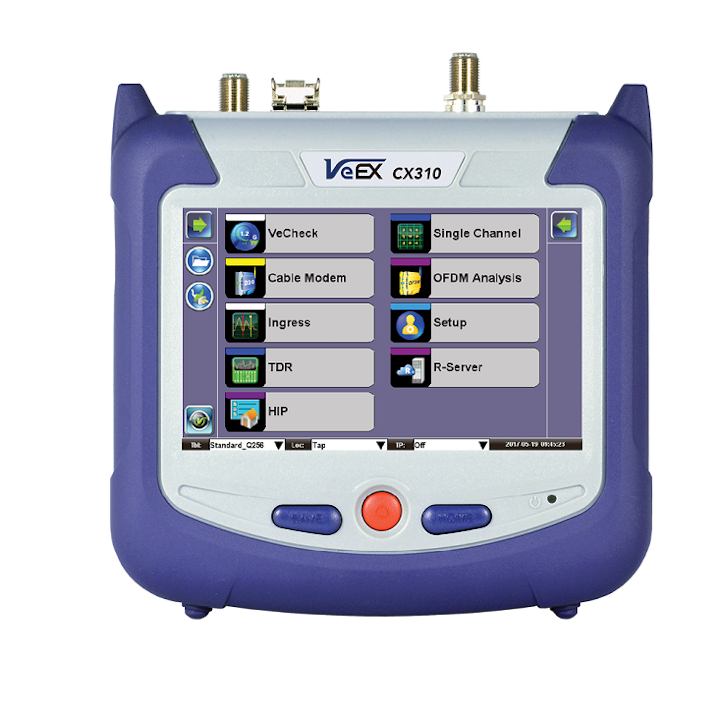

VeEX CX310

Sept. 26, 2017

The CX310 is a lightweight, ultra-portable and cost-effective DOCSIS 3.1 installer meter. As MSOs are beginning to roll out DOCSIS 3.1 based services, installers need the ability to verify DOCSIS 3.1 OFDM signals.

The CX310 includes a built-in DOCSIS 3.1 cable modem and offers true OFDM analysis and also provides VeTest to verify the subscriber's actual throughput rates. Key SLM features include Single Channel, Full System Scan, and Ingress Scan, all with a range up to 1.2 GHz and a dual diplexer software configurable on the fly for today's mid-split network and tomorrow's high-split network. The CX310 meter can be integrated with the VeSion R300 Product Server that integrates home certification testing, asset management and billing/record systems.
