Gigamon GigaVUE H Series

Content Dam Btr Migrated 2012 09 Bgr12diamondlogo4
Content Dam Btr Migrated 2012 09 Bgr12diamondlogo4Monitoring and management tools are only as good as the traffic they can see, Gigamon says. What is believed to be the best location for connecting tools could change given the dynamic nature of the network. The GigaVUE H Series sends any packet to any destination, providing the appropriate network traffic to the monitoring tools.

Gigamon Gigavue 300x180The company's Flow Mapping packet distribution technology aggregates, replicates and filters traffic flows, which allows for dynamic connectivity for 40G, 10G, or 1G monitoring, compliance and archival tools. These include intrusion detection systems, protocol analyzers, deep packet inspection analyzers, VoIP and MPEG Video Analyzers, application and network performance monitors, and stream-to-disk data recorders.

Fabric nodes acquire and map traffic from multiple data sources under one of the following scenarios: filtering and mapping (any-to-any), aggregation (many-to-any), multicasting (any-to-many). In other words, once data is acquired from multiple mirror/SPAN ports or TAPs, it can be multicast to multiple tools, aggregated to a few consolidated tools, and filtered or divided across many instances of the same tools.

The Diamonds judges noted that backbone visibility is "crucial to allow operators to make the best decisions toward configuration edits and upgrades," and applauded the Flow Mapping technology as being vital for collecting the "analytics needed to adjust designs quickly and plan long-term solutions."

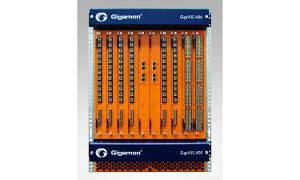

Two models are available, the GigaVUE-HD8 with a 14U footprint and eight line card slots, and the GigaVUE-HD4 with a 5U footprint and four line card slots.

www.gigamon.com

See them at Cable-Tec EXPO, Booth 511
