Corning Optical Communications OptiTect Sealed Local Convergence Point Enclosure Cabinet

Dtr17 Corning Optitect Sealed Local Convergence Point Enclosure Lcpe Cabinet Corning Optical

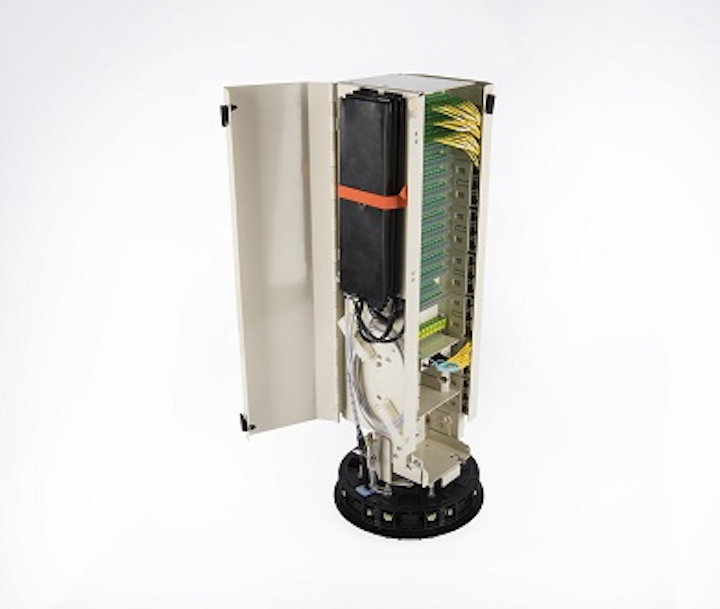

The Corning OptiTect sealed local convergence point enclosure (LCPE) with onboard WDM mux/demux, full midspan and butt-splicing capability combines all aspects of the converged network local convergence point into one 28-inch closure-style unit.

Dtr17 Corning Optitect Sealed Local Convergence Point Enclosure Lcpe Cabinet Corning Optical

With a 128-fiber PON distribution panel for optical power splitting, 12-fiber pass-through and up to 8 channels of mux/demux, this unit also enables the complete onboard splicing of feeder and distribution fibers. Operators can midspan up to 96-fiber cables - ribbon, loose tube, and microcable - while leaving pass-through buffer tubes intact. All 128 fiber distribution splicing occurs in an intuitive, craft-friendly panel, and feeder fibers can mux and demux as desired for converged optical network architectures, the company says.
